LRI Trigger Guard
LRI single-shot trigger guards are available with hole spacing for a variety of receivers. If you don't see a guard with the required hole spacing, call us and place your order over the phone. It's very easy for us to adapt to your needs. The outer frame of the guard is machined with a 2-1/2* degree taper to make bedding the guard easy.
Some notes regarding trigger guards and guard screws:
"Custom does not come in a box..."
Measuring a receiver:
If hole space dimensions for your action cannot be obtained by the manufacturer, measuring the center-to-center hole distance is easy to do yourself with a pair of calipers.
For receivers like an M700, this isn't required as there is no middle screw hole in the receiver in the 1/4-28 size. In this instance, the popular alternative is to use a threaded insert/ferrule fitted to the stock instead.
Nesika Bay Precision Receivers produced in Poulsbo or Sturgis before 2005: Nesika actions made during this time often suffered from poorly controlled guard screw hole locations. You are encouraged to measure your receiver when ordering a trigger guard for a Nesika action made before 2005. If you determine that the hole is outside of a nominal/common distance, you can select the "custom. . ." option in the drop-down menu. The models and programming here are flexible so a one-off part is easily doable. Annotate the center-to-center hole distance you want it made to in the notes section of your order. We'll handle the rest.
Guard screw countersinks in trigger guards: The countersink for the screw is a feature we've debated over heavily with this product. The issue is that many aftermarket receiver manufacturers sell guard screws that are unique to their products. The challenge is trying to anticipate the flange thickness on the head of the screw because receiver manufacturers all do it a little differently. This complicates fit and finish as there isn't a practical way to make a screw fit flush if the countersink is already too deep.
Our solution is to make our hardware. Our trigger guards are counterbored and countersunk so that the head of the screw we make is flush with the presentation side of the trigger guard. Our screws come in two lengths and are sold individually.
LRI trigger guards are available in a variety of finishes:
- In the white (As Machined in aluminum, carbon steel, and stainless steel)
- Full mirror polish (SS only)
- Glass Bead (SS only)
- Parkerized (Carbon steel only)
- Blued (Carbon steel only)
- Case colored (Carbon steel only and will be delayed as they are run in batches)
- Niter Blue (Carbon steel only)
- Cerakote oven cure (Aluminum, carbon, and stainless)

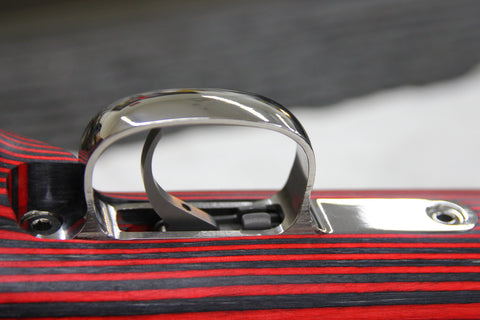

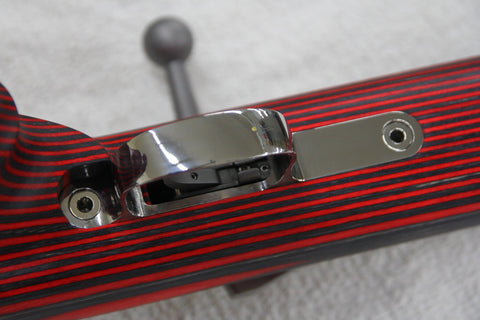

A polished trigger guard mated to a Kelbly Panda in a GRS stock.

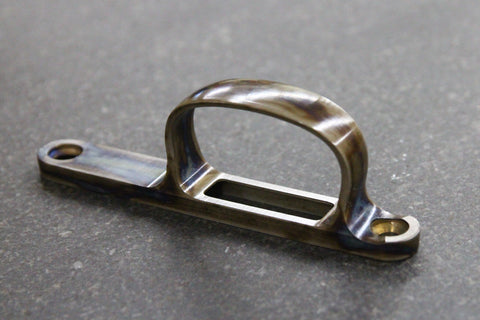

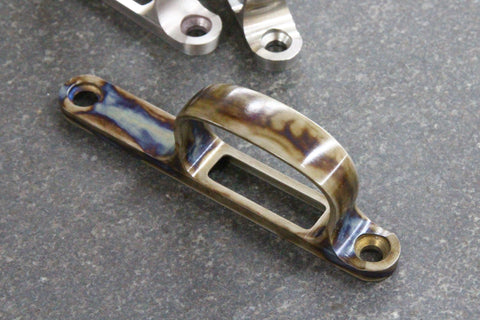

Case Colored trigger guard
Machined carbon or stainless steel trigger guards "in the white."
